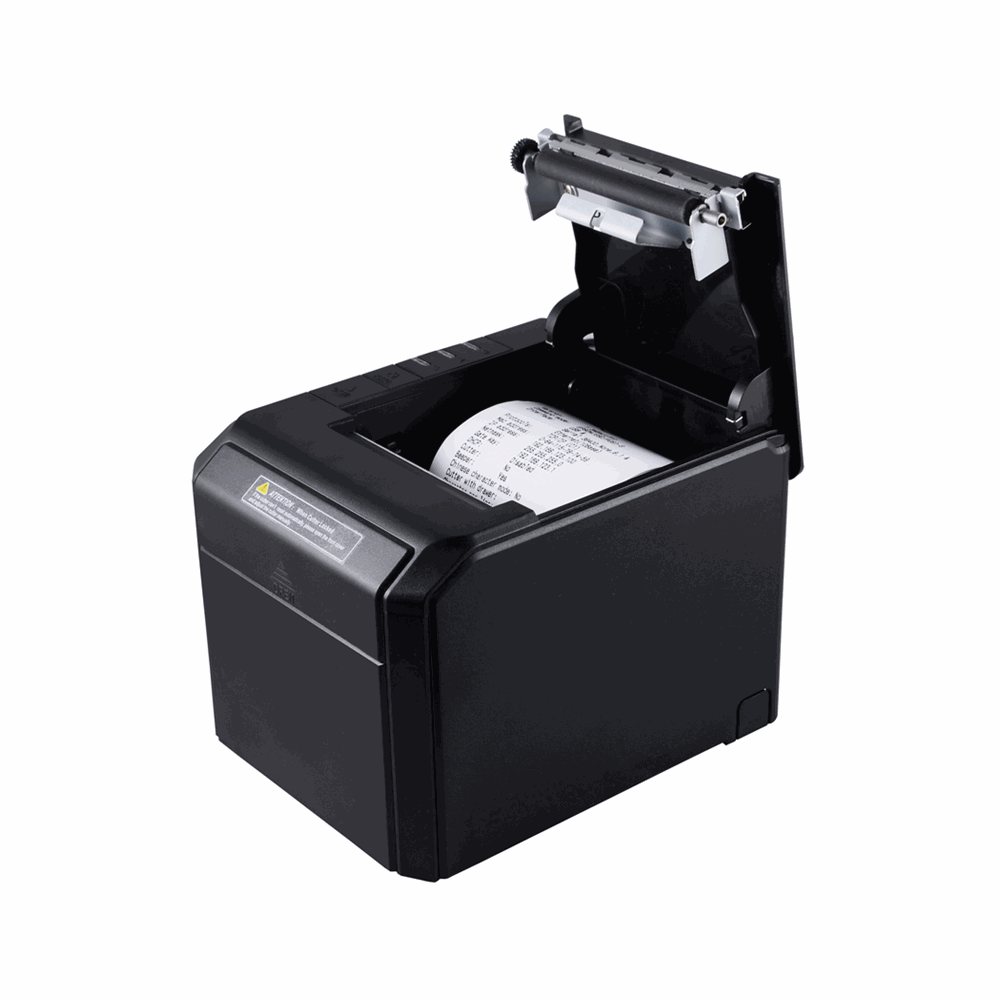

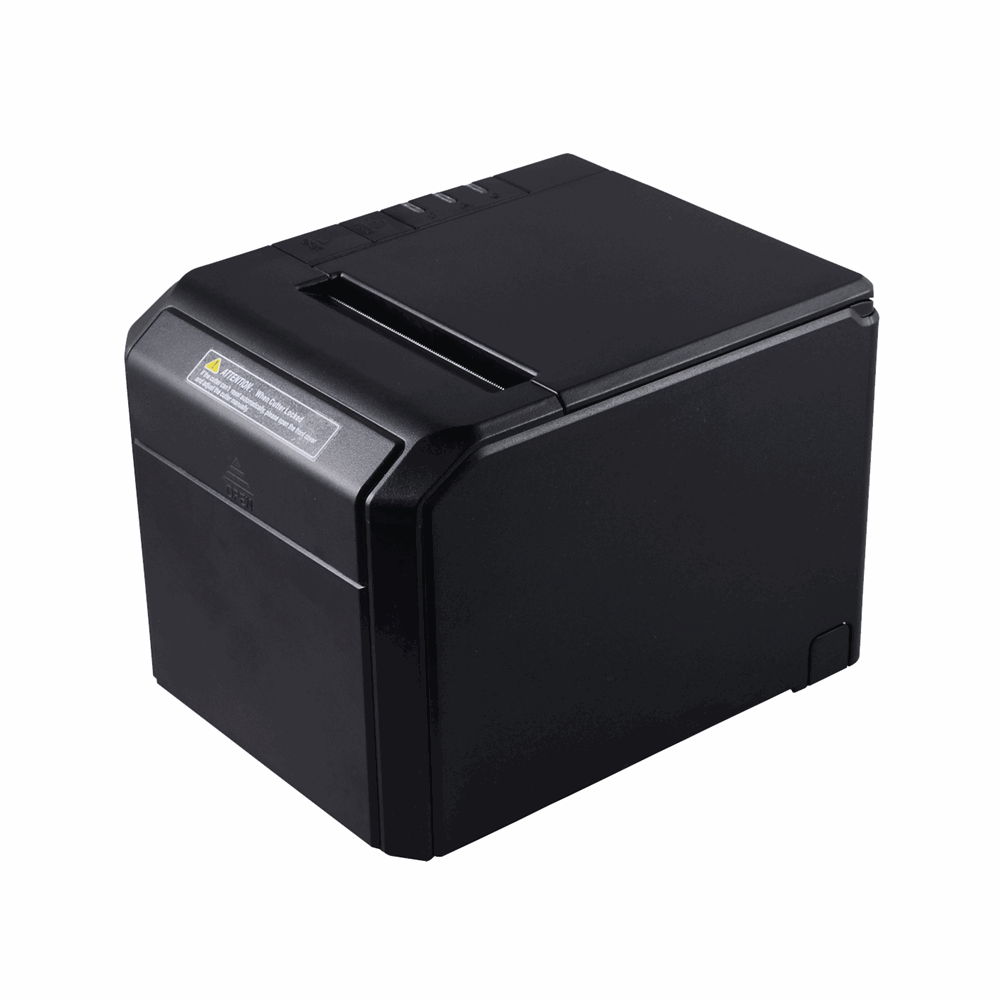

Thermal Receipt Printer

PGU83002

Eigenschaften
  • Compatible with  ESC/POS and Star commands
  • Waterproof, oil-proof, dust-proof structure
  • Kitchen printing and network printing supported
  • Network Statusmonitoring, multilink printing supported
  • OPOS driver supported
  • Printer authentication and software bundle
  • High speed driver printing mode, serial port speed is 66% faster
  • Auto print recovering when network disconnected
  • Virtual serial port for USB connection,  USB port supports OPOS application
  • lOOMB network interface card makes the connection and  print much faster,stop receipts misprinting
Technische Details
Print method Direct thermal line
Dot density 512dot/line, 576dot/line
Print Speed 300mm/s
Interface Serial+USB+Ethernet, Parallel+USB
Paper width 83mm
Paper thickness 0.06-0.08mm
Auto cutter 1.5 Million cuts
Weight 1.24Kg
Demension 140x175x137mm
Work environment Temperature:0-45°C, Humidity: 10-80%
Barcode type UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
Character ANK character: Font A: 12x24dots; Font B: 9x17dots Chinese: 24x24dots
Driver Windows 2000/2003/XP/Vista/7/OPOS/Linux
Power supply DC 24V/2A
Reliability 150km
Fonts GB18030
NV Flash 256K Bytes
Data buffer 128 bytes
Storage environment  Temperature: -10-60°C, Humidity: 10-90%
Technische Dokumente

Hier bekommen Sie technische Unterlagen zum Download:
