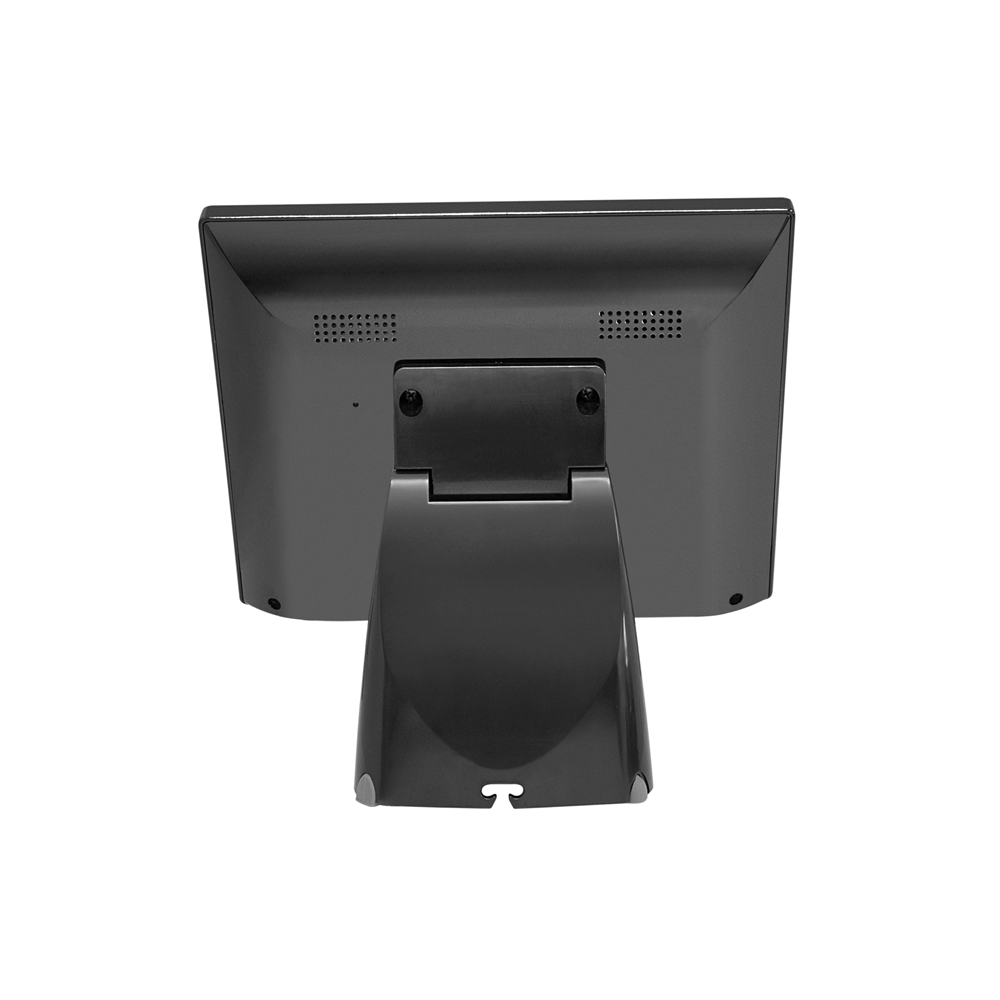

10.4″ Rimless USB LCD Monitor

MF104VG/MF104VR/MF104VP

Eigenschaften
  • Rimless front bezel design
  • Low power consumption only 6Wwith LED backlight
  • Sleek Surface throughout monitor’s appearance
  • Viewing angle adjustment up to 68°
  • VESA 75x75mm wall mounting standard
  • User friendly OSD Control buttons
  • Integrated with protection glass (Model: MF150VG)
    or 5 wires resistive flat touch (Model: MF150VR)
    or Projected capactive touch (Model: MF150VP)
  • Smart cable management
  • Small footprint
Technische Details
Model MF104VG I MF104R I MF104VP
Cabinet Color Black or White
Cover Lens Mitsubishi PMMA Hardness > 5H (JIS D0202), T>93%(MF104VG)/5 wires resistive flat touch (MF104VR)/ PCAP touch (MF104VUP)
Display Type 10.4″ diagonal TFT active matrix with LED backlight
Recommended Resolution 800x 600
Brightness 300 cd/m²(typ.)
Contras! Ratio 500:1 (typ.)
Viewing Angle 150° (H) / 110° (V)
I/O Connectivity D-Sub 15pin VGA. DC12V (MF104VG) Mini USB(for MF104VR,MF104VP)
