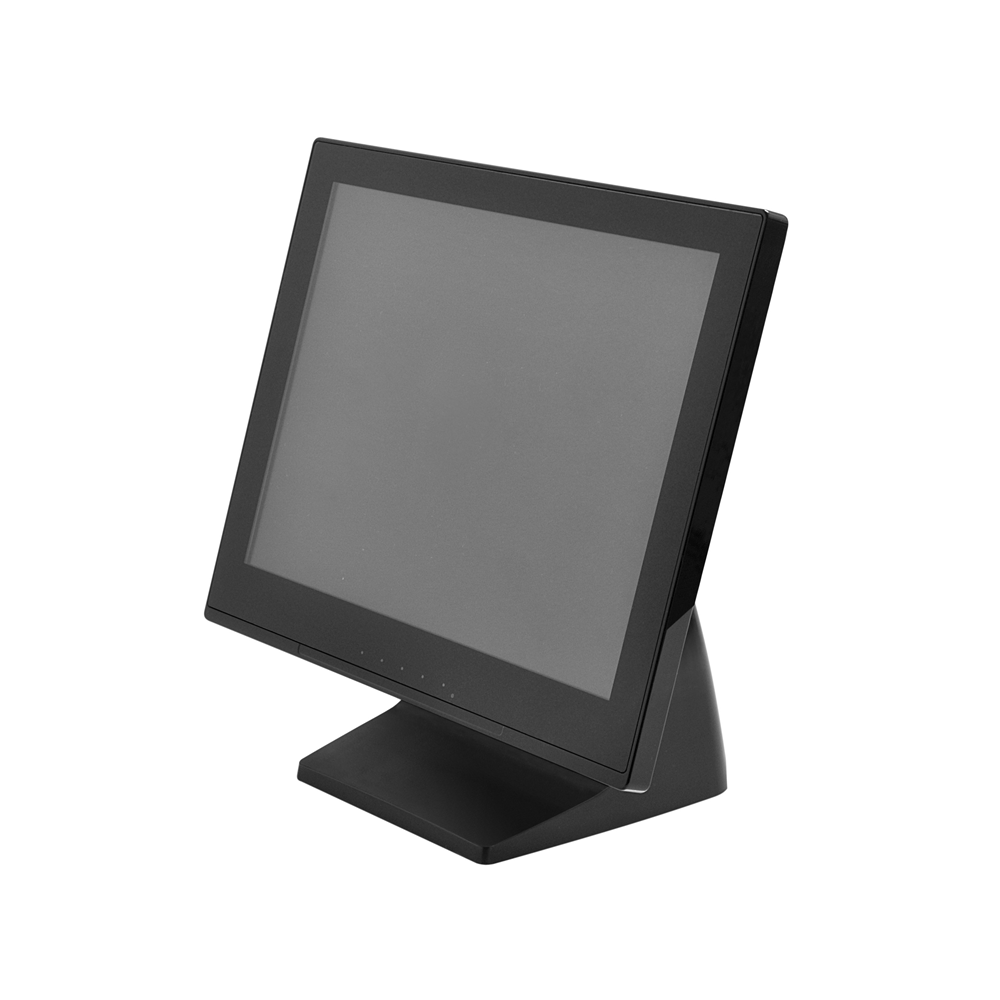

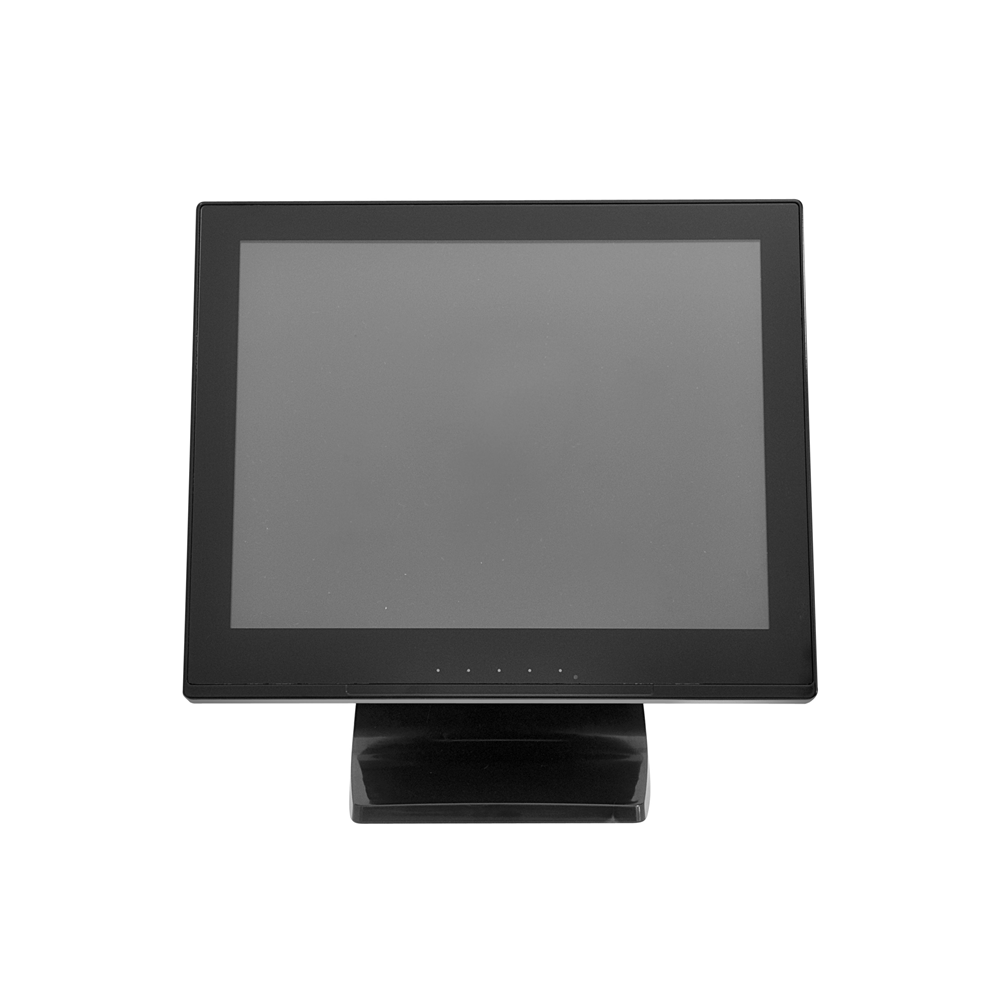

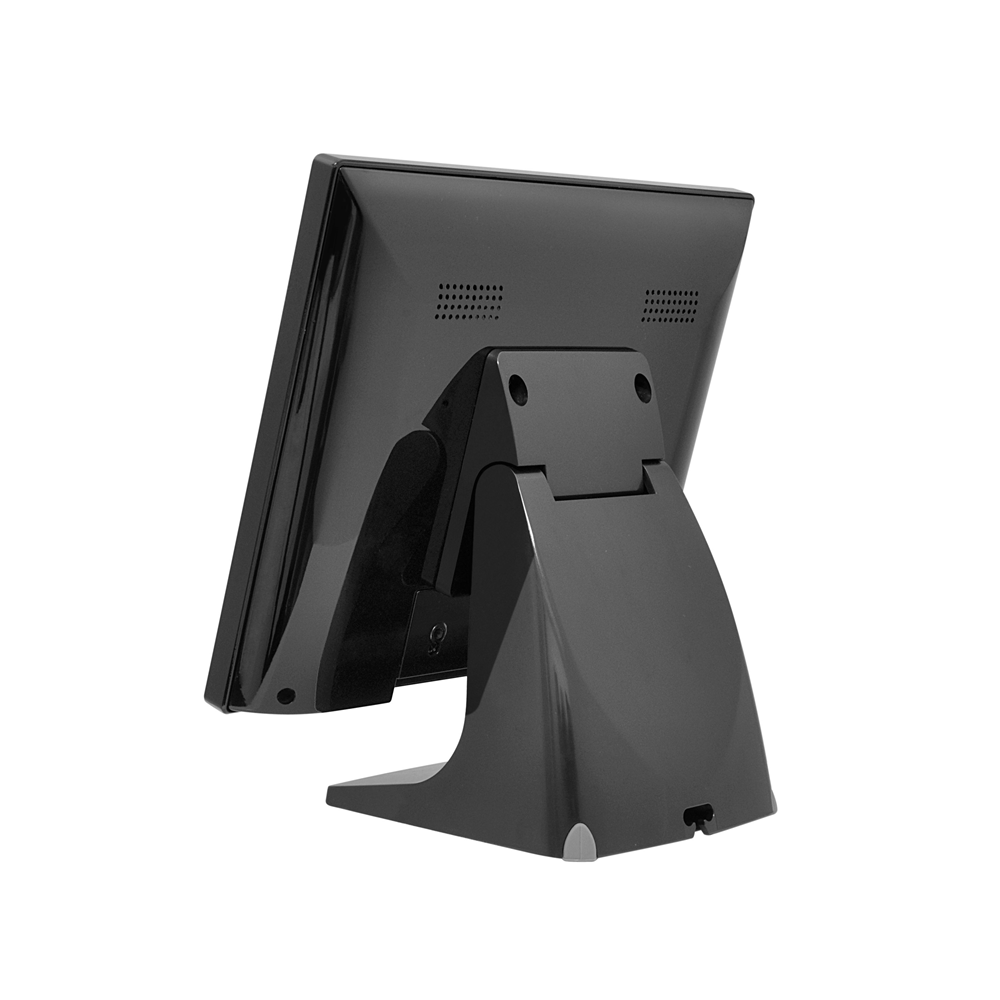

10.4″ USB POS LCD Monitor

MF104UG/MF104UR

Eigenschaften
  • Rimless front bezel design
  • Low power consumption with LED backlight
  • Sleek Surface throughout monitor’s appearance
  • VESA 75x75mm wall mounting standard
  • Integrated with protection glass (Model: MF104UG)
    or 5 wires resistive flat touch (Model: MF150UR)
  • USB Powered
Technische Details
Model MF104VG I MF104R I MF104VP
Cabinet Color Black or White
Cover Lens Mitsubishi PMMA Hardness > 5H (JIS D0202), T>93%(MF104UG)/5 wires resistive flat touch (MF104UR)
Display Type 10.4″ diagonal TFT active matrix with LED backlight
Recommended Resolution 800x 600
Brightness 300 cd/m²(typ.)
Contras! Ratio 500:1 (typ.)
Viewing Angle 150° (H) / 110° (V)
I/O Connectivity Mini USB x 1, DC 12V in
DC Power Optional power adaptor
Technische Dokumente

Hier bekommen Sie technische Unterlagen zum Download:
