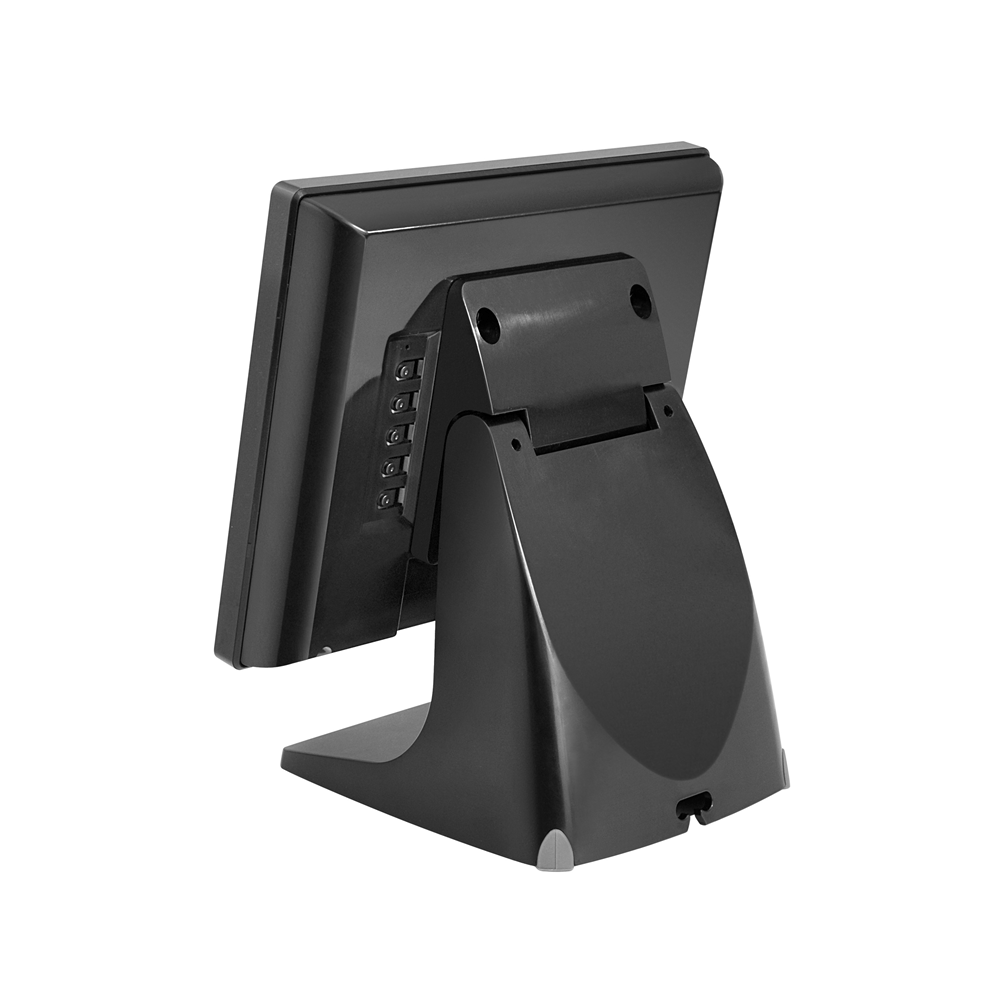

8″ Rimless POS LCD Monitor

MF080VG / MF080VR / MF080VP

Eigenschaften
  • Rimless front bezel design
  • Integrated with protection glass (Model: MF080VG)
    or 5 wires resistive flat touch (Model: MF080VR)
    or PCAP touch (Model: MF080VP
  • Small footprint
  • VESA 75x75mm wall mounting standard
  • Sleek Surface throughout monitor´s appearance
  • Smart cable management
  • Tilting angle adjustment up to 68°
  • Low power consumption only 6W with LED backlight
  • Support 1024×768 @60Hz
Technische Details
Model MF080VG I MF080VR I MF080VP
Cabinet Color Black or White
Cover Lens Mitsubishi PMMA (MF080VG)/
5 wires resistive flat touch (MF080VR)/ PCAP touch (MF080VP)
Display Type 8″ diagonal TFT active matrix with LED backlight
Recommended Resolution 800 x 600 or 1024 x 768 @60Hz
Brightness 250 cd/m²(typ.)
Contras! Ratio 500:1 (typ.)
Viewing Angle 125° (H) / 140° M
I/O Connectivity D-Sub 15 pins (1 .8 meters cable)
Backlight MTBF 20,000 hrs
Technische Dokumente

Hier bekommen Sie technische Unterlagen zum Download:
