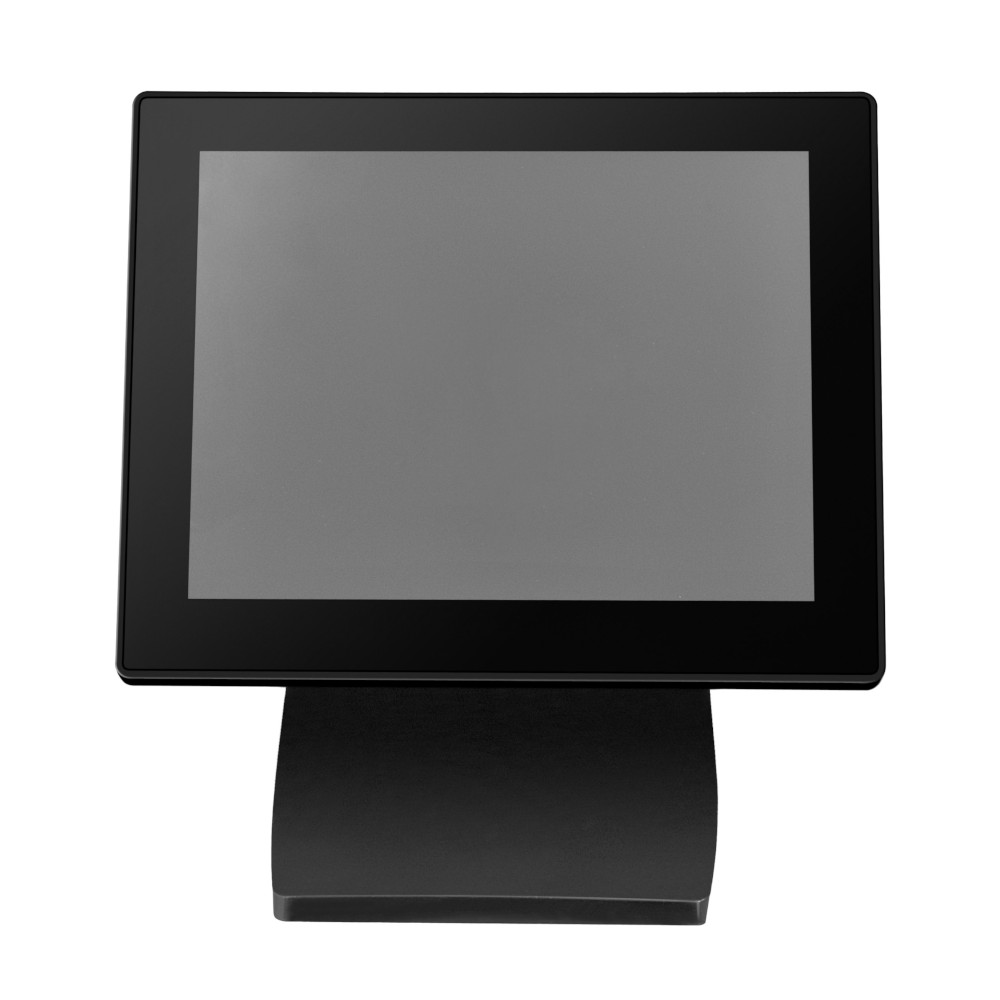

8″ Rimless USB LCD Monitor

MF080UG/MF080UR

Eigenschaften

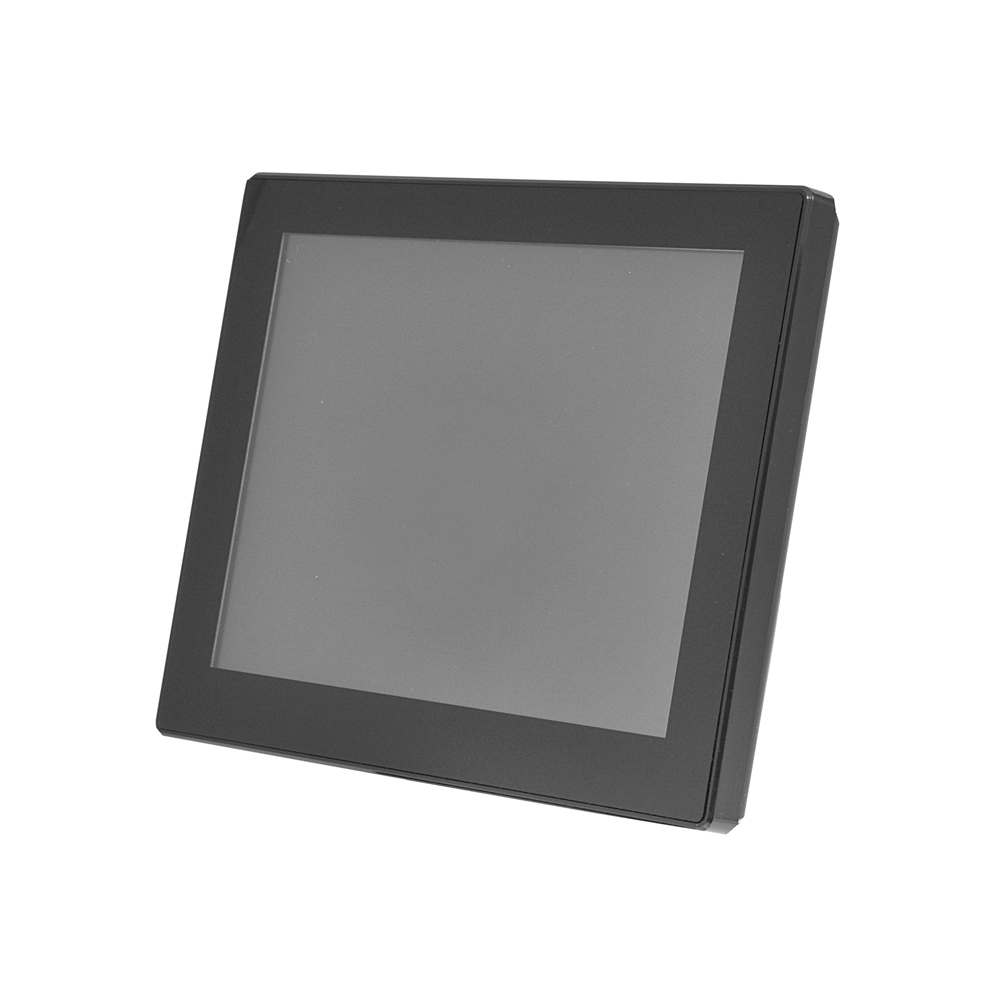

  • Rimless front bezel design
  • Integrated with protection glass (Model: MF080UG)
    or 5 wires resistive flat touch (Model: MF080UR)
    or PCAP touch (Model: MF080UP
  • Small footprint
  • VESA 75x75mm wall mounting standard
  • Sleek Surface throughout Monitor’s appearance

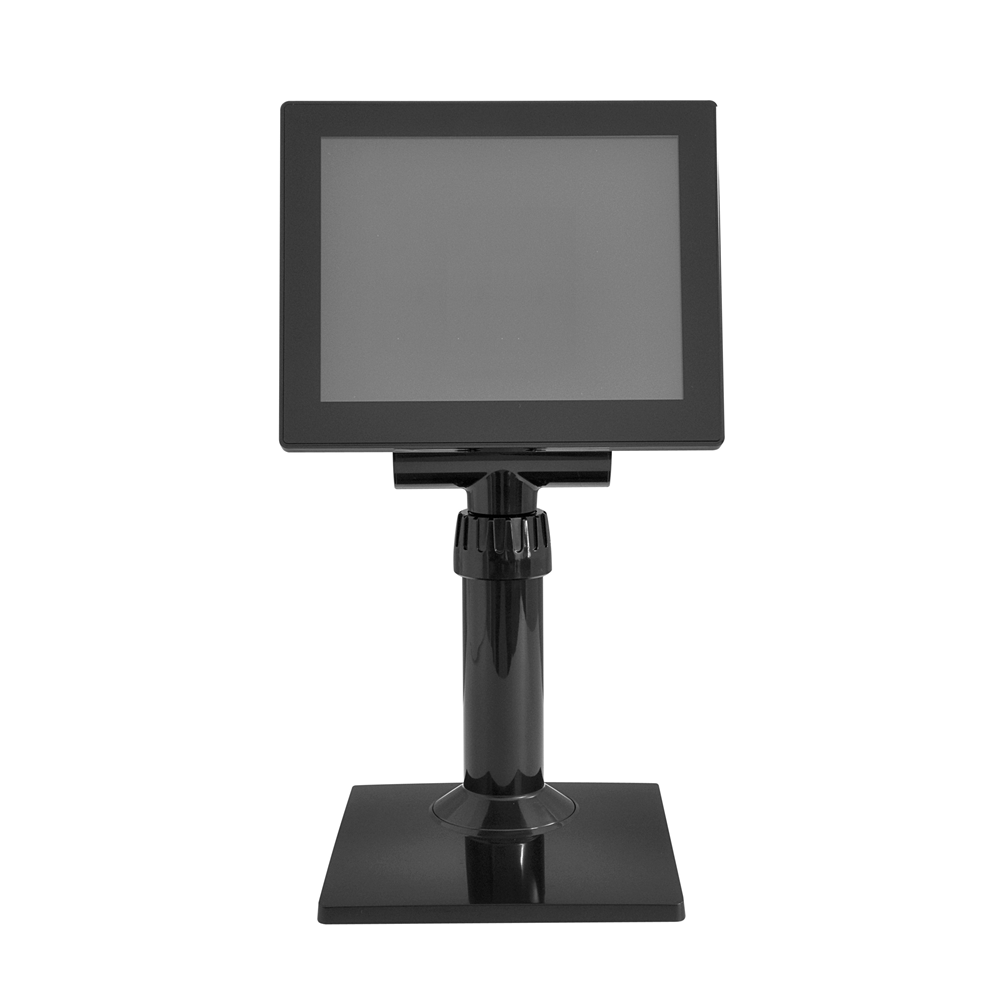

  • Optinal tool-free height adjustment pole base
  • Smart cable management

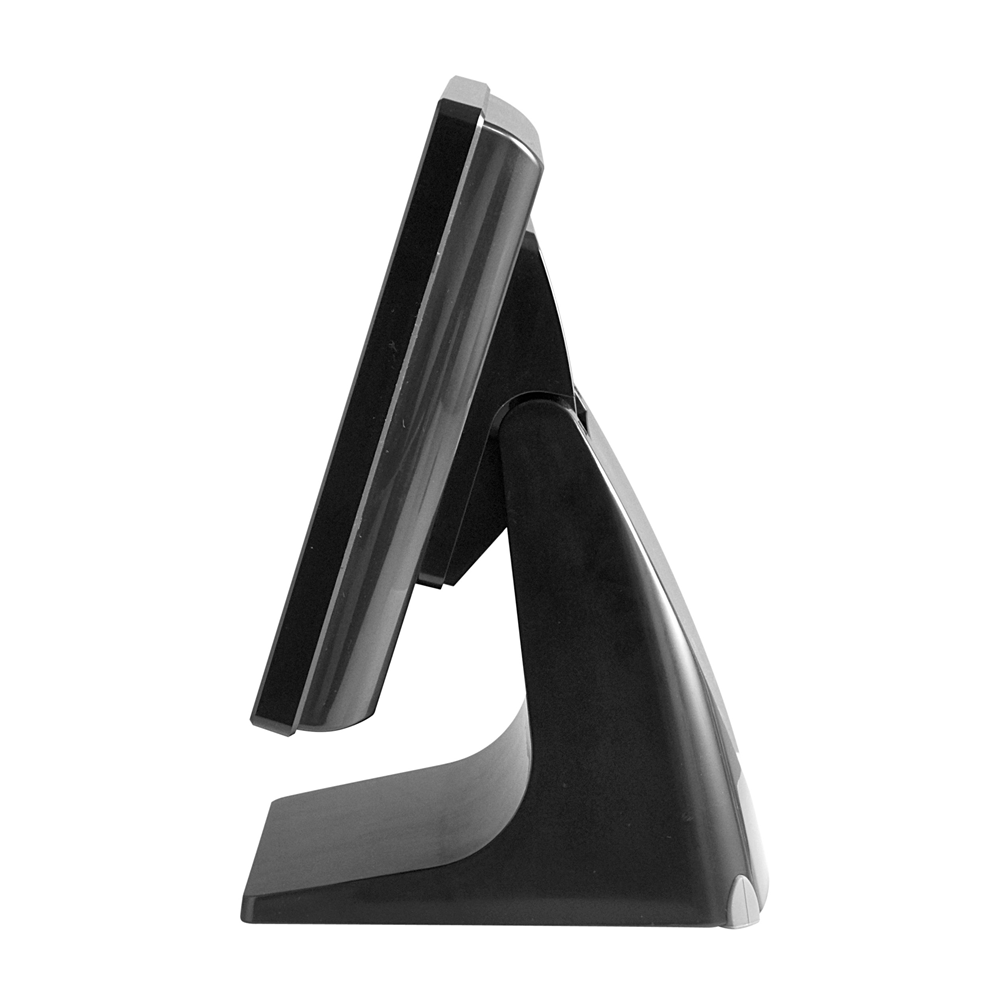

  • Tilting angle adjustment up to 68°
  • Low power consumption only 2,5W with LED backlight
Technische Details
Model MF080VG I MF080VR I MF080VP
Cabinet Color Black or White
Cover Lens Mitsubishi PMMA > 5H (JIS D0202), T>93%(MF080UG)/5 wires resistive flat touch (MF080UR)/ PCAP touch (MF080UP)
Display Type 8″ diagonal TFT active matrix with LED backlight
Recommended Resolution 800 x 600
Brightness 250 cd/m²(typ.)
Contras! Ratio 500:1 (typ.)
Viewing Angle 140° (H) / 125° (V)
I/O Connectivity Mini USB
Technische Dokumente

Hier bekommen Sie technische Unterlagen zum Download:
