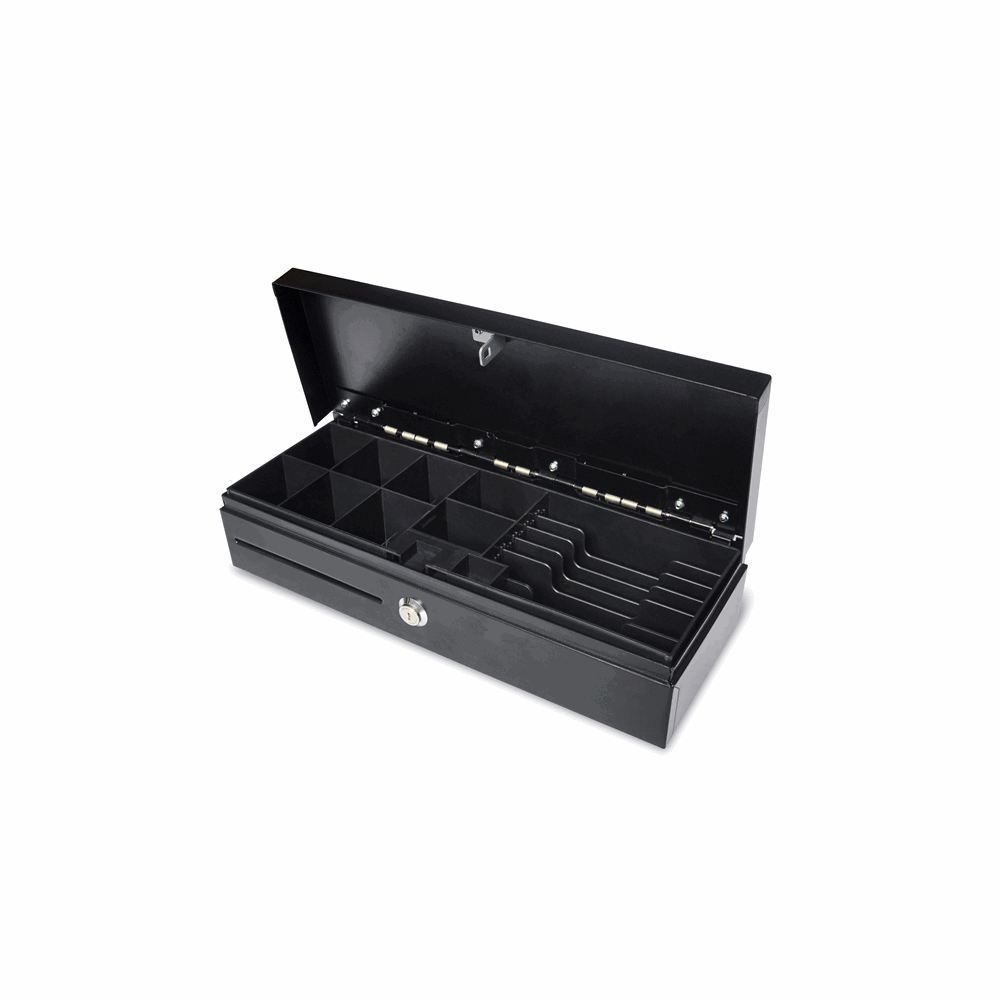

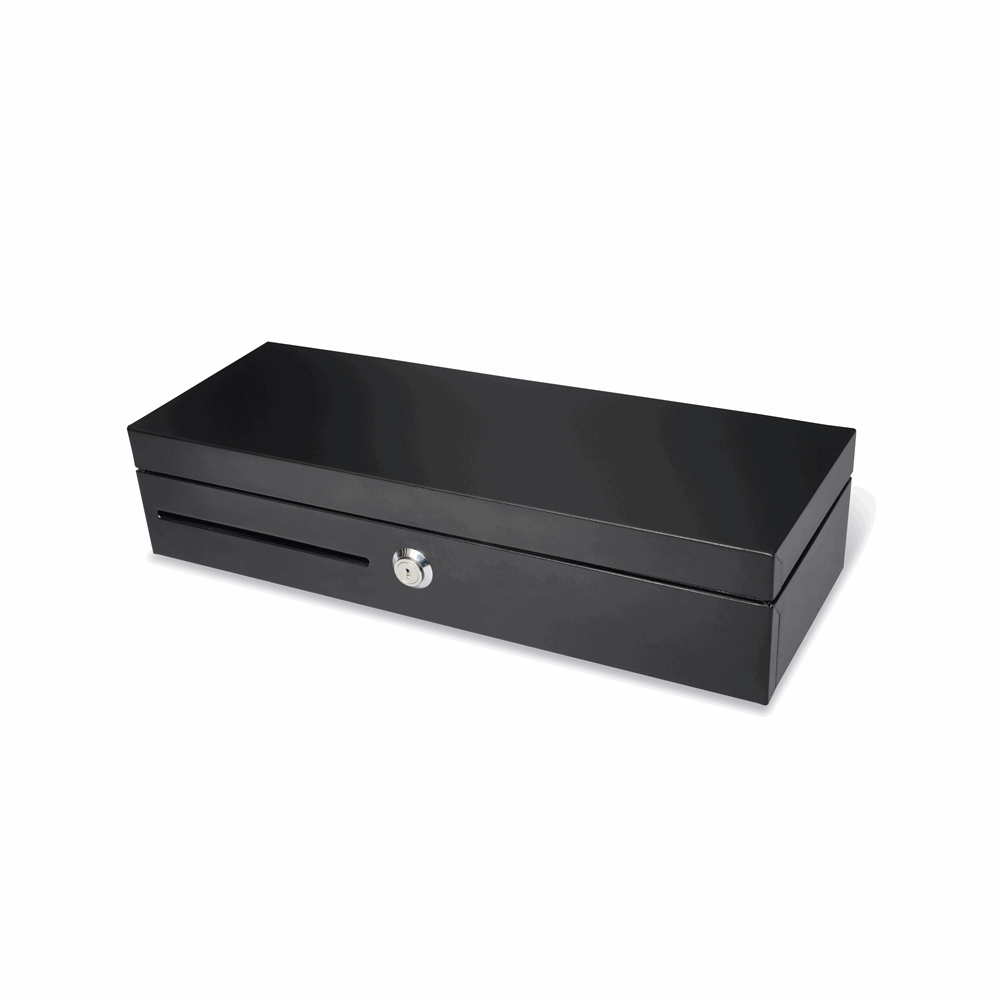

Flip Top Cash Drawer

CMF460

Eigenschaften
  • Stanless Top
  • Unit with Lockale Tray Lid
  • Decorated Lock
  • Removable Interface
  • Cable Cover
Technische Details
Model CMF460
PHYSICAL
Dimension 460 (W)x170 (D)x100 (H) mm
Construction Thick gauge cold rolled steel & SECC
Finish Textured hybrid powder coat
Color Black, Beige and Custom type
Slide Ball bearing slide for smooth & stable operation
CASH TRAY (INSERT)
Construction Shatter-resistant plastic
Currency Layout 6-Bill, 8-Coin Slots
Media Slots 1
OPERATION
Lock 2-Position lock: locked, open/closed, manuel open, electronical driven
Interface RJ11, RJ12, USB, RS232, DC 2,5/3,5 Jack, custom type
Lifecycle MTBF 1,000,000 times +
Micro Switch Cash Drawer Status Micro Switch
OPTION ACCESSOIRIES
Stainless Steel Front Part Number Description
Cash tray with different currency layout Tray-460FT
Cash Tray
Different Color Cover 460FT Lockable Cover for Tray-460FT
Different interfaces Cover 460FT Lockable Cover for Tray-460FT
PACKING DETAILS
Models Net Weight(Kg) Gross Weight/Kg) Carton Size(cm)
CMR460 5 5,5 51 x 22 x 14
Technische Dokumente

Hier bekommen Sie technische Unterlagen zum Download:
